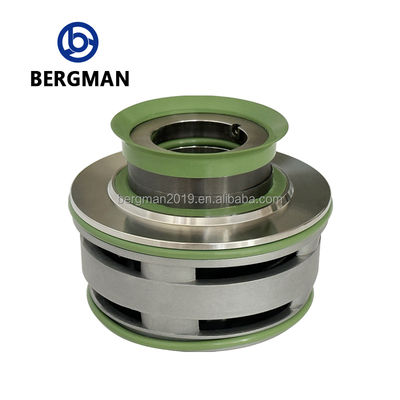

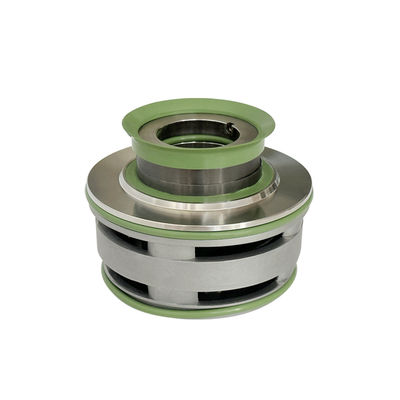

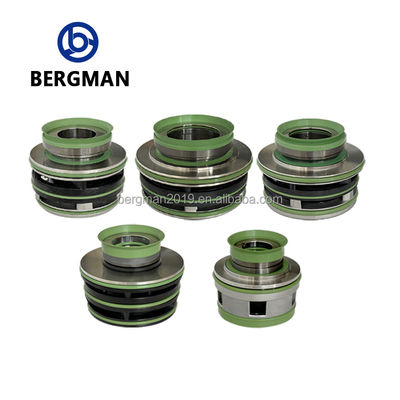

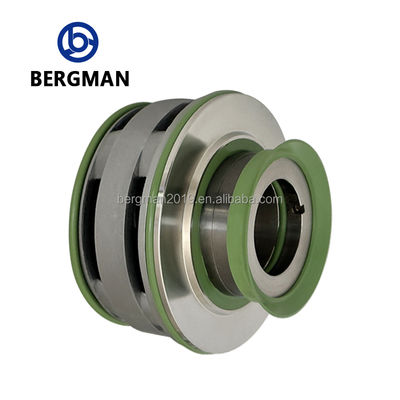

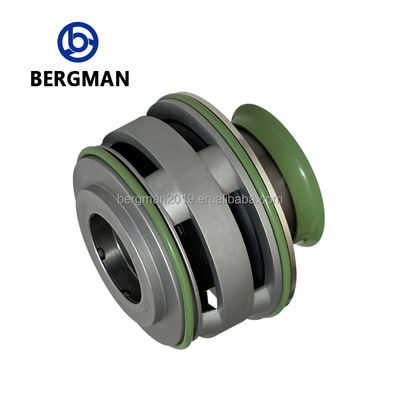

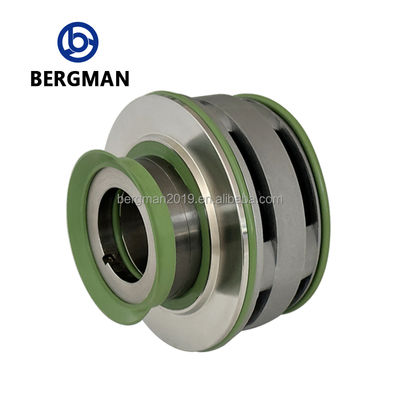

35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified

  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
  • 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified
Nguồn gốc Quảng Châu, Trung Quốc
Hàng hiệu BERGMAN, BERGMAN
Số mô hình FS-35
Số lượng đặt hàng tối thiểu 1
Giá bán $200-280

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Kích cỡ 35mm Vật liệu mặt Vonfram cacbua tc
Vật liệu chỗ ngồi Vonfram cacbua tc Chất liệu đàn hồi VITON FPM
Các bộ phận kim loại SS316 Hastelloy C AM350 Áp lực tối đa 1,5MPa
Tốc độ dòng ≤ 15m/s Phạm vi nhiệt độ -20 ° C-180 ° C.
Người mẫu FGL-FS Mã HTS 8484.20.00
Kích thước tiêu chuẩn 20 mm, 25 mm, 35mm, 45mm, 60mm, 90mm Con dấu thứ cấp VITON FPM
Tiêu chuẩn tuân thủ DIN24960, ISO3069, EN12576, API682 Tốc độ dòng tối đa 15m/s
Vật liệu O-vòng Khác nhau
Làm nổi bật

ISO9001-2015 Certified Flygt Mechanical Seal

,

TC Face Cartridge Mechanical Seal

,

TC Seat Metal Frame Mechanical Seal
Để lại lời nhắn
Mô tả sản phẩm
Replace Flygt Pump FS-35mm 3153 8204 2660 2670 Metal Frame Cartridge Mechanical Seal
Product Overview
Guangzhou Bergman Mechanical Seals Co., Ltd. specializes in high-quality mechanical seals for industrial applications.
Specification Details
Product Name Mechanical Seal
Size Standard sizes: 20mm, 25mm, 35mm, 45mm, 60mm, 90mm
Brand BERGMAN
Model FGL-FS
Pressure ≤ 1.5mpa
Temperature -20°C-180°C (Depends on O-ring material)
Face Material Tungsten carbide TC
Seat Material Tungsten carbide TC
Secondary Seal VITON FPM
Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015
Compatible Flygt Pump Models
2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171, 3152, 4650, 4660, 5100.250, 5100.251, 5100.260, 5100.261, 3202, 4670, 4680, 5100.300, 5100.310, 5151.300, 5151.310, 3301, 5150.350, 5150-360
Key Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective alternatives
  • 2000+ square meters warehouse with large inventory for fast delivery
  • Can replace Burgman, John Crane, AES and other renowned brand seals
  • OEM and customized services available
  • Factory-direct pricing with excellent after-sales service
Material Advantages
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings.
35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 0 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 1
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. With over 20 years of development, we have grown into a leading manufacturer with ISO9001:2015 certification. Our product range includes various mechanical seals for pumps, fluid systems, and industrial applications, using premium materials like cemented carbide, silicon carbide, and carbon graphite.
35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 2
Production Capabilities
  • 2000+ square meters warehouse with large inventory
  • Modern machine tools and dust-free workshop
  • Advanced inspection equipment and assembly line operation
  • Regular participation in Guangzhou Spring Import and Export Fair
35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 3 35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 4
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation industries.
Packaging & Shipping
Various packaging options available with customized packaging for large orders. Efficient shipping via air, sea, or express.
35mm Flygt Mechanical Seal with TC Face and TC Seat for Flygt Pump ISO9001-2015 Certified 5
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days for production.
Q: Do you provide free samples?
A: Samples are not free, but sample costs can be refunded after order placement.
Q: What are your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipment. We accept T/T, BABY, Western Union, and Alibaba payments.
