Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard

  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
  • Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
Nguồn gốc Quảng Châu, Trung Quốc
Hàng hiệu BERGMAN, BERGMAN
Số mô hình T05-25mm
Số lượng đặt hàng tối thiểu 1
Giá bán $35-60

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Kích cỡ 25 mm Vật liệu mặt Vonfram cacbua tc
Vật liệu chỗ ngồi Vonfram cacbua tc Chất liệu đàn hồi VITON FPM
Các bộ phận kim loại SS316 Hastelloy C AM350 Áp lực tối đa 1,5MPa
Tốc độ dòng ≤ 15m/s Phạm vi nhiệt độ -20 ° C-180 ° C.
Mã HTS 8484.20.00 Người mẫu T05-25mm
Kích thước tiêu chuẩn 20mm, 25mm, 35mm Tiêu chuẩn tuân thủ DIN24960, ISO3069, EN12576, API682
Con dấu thứ cấp VITON FPM Tùy chọn vật chất Cacbua vonfram, silicon cacbua, than chì carbon, alumina
Model thay thế Flygt 3102, 5520, 3085
Làm nổi bật

Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal

,

25mm Flygt Pump Mechanical Seal

,

DIN24960 Standard Pump Mechanical Seal
Để lại lời nhắn
Mô tả sản phẩm
Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal
Product Overview

This high-quality mechanical seal is designed to replace Flygt pump seals, manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd.

Technical Specifications
Parameter Value Parameter Value
Name Mechanical Seal Size Standard size (20mm, 25mm, 35mm)
Brand BERGMAN Model T05-25mm
Pressure ≤ 1.5mpa Line Speed ≤ 15m/s
Temperature -20°C-180°C (Depends on O-ring material) Application Flygt pump
Face Material Tungsten carbide TC Seat Material Tungsten carbide TC
Secondary Seal VITON FPM Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models

This seal is compatible with a wide range of Flygt pump models including:

  • 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071
  • 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140
  • 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740
  • 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080
  • 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170
  • 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350
  • 3351, 3356, 3400, 3501, 3530, and full range of Flygt pump mechanical seals
Product Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective options
  • Large inventory with factory-direct pricing
  • Compatible with Burgman, John Crane, AES and other renowned brands
  • OEM and customization services available
  • Fast delivery and excellent after-sales service
Material Advantages

Our seals feature wear-resistant materials including:

  • Tungsten carbide
  • Silicon carbide
  • Carbon graphite
  • Alumina
  • Rubber seals (VITON FPM)
  • PTFE seals
  • High-quality O-rings

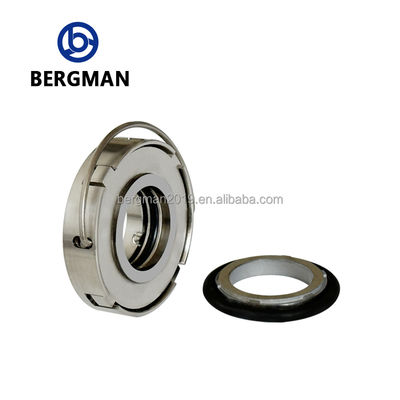

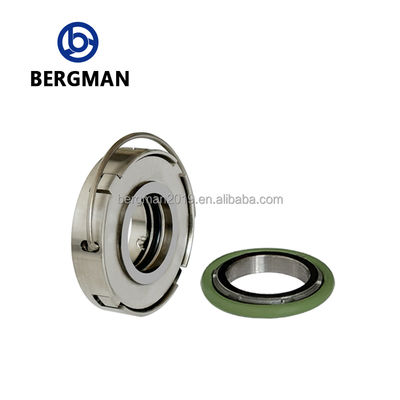

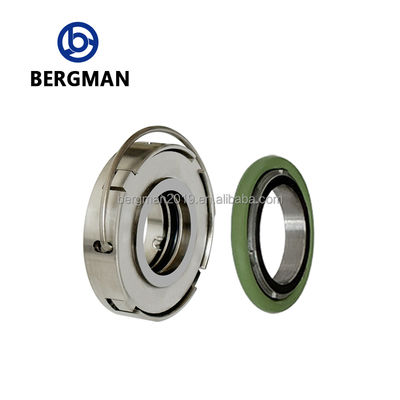

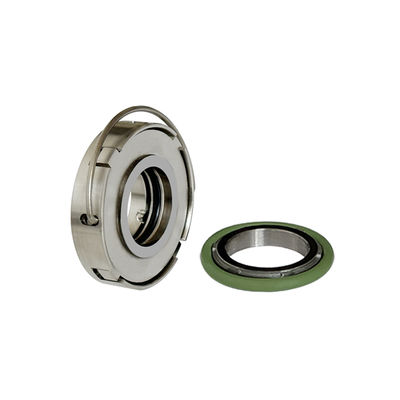

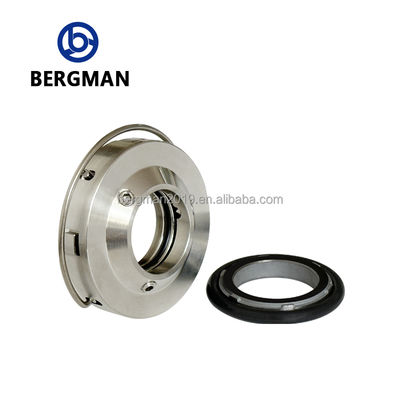

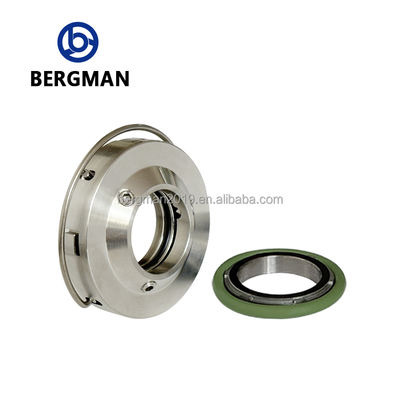

Product Images
Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 0 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 1 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 2
Company Profile

Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company was reorganized in 2019 and expanded in 2023. We are ISO9001:2015 certified and specialize in:

  • Pump mechanical seals
  • Axe mechanical seals
  • Fluid mechanical seals
  • Metal bellows mechanical seals
  • Various sealing materials (carbide, silicon carbide, carbon graphite, alumina)

Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for fast delivery.

Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 3 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 4 Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard 5
Frequently Asked Questions
Q: Are you a factory or a trader?

A: We are a production factory with our own international trade department.

Q: Where is your factory located?

A: Our factory is in Guangzhou City, near Guangzhou Port and Shenzhen Port.

Q: How many days is your delivery time?

A: Stock items ship immediately. Custom items require 10-25 days depending on quantity.

Q: What are your payment terms?

A: For stock: 100% prepayment. For custom orders: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
