Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size

  • Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size
  • Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size
  • Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size
  • Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size
  • Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size
Nguồn gốc Quảng Châu, Trung Quốc
Hàng hiệu BERGMAN, BERGMAN
Số mô hình T05-35mm
Số lượng đặt hàng tối thiểu 1
Giá bán $50-80

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Kích cỡ 35mm Vật liệu mặt Vonfram cacbua tc
Vật liệu chỗ ngồi Vonfram cacbua tc Chất liệu đàn hồi VITON FPM
Các bộ phận kim loại SS316 Hastelloy C AM350 Áp lực tối đa 1,5MPa
Tốc độ dòng ≤ 15m/s Phạm vi nhiệt độ -20 ° C-180 ° C.
Người mẫu T05-35mm Mã HTS 8484.20.00
Tiêu chuẩn tuân thủ DIN24960, ISO3069, EN12576, API682 Con dấu thứ cấp VITON FPM
Tùy chọn vật chất Cacbua vonfram, silicon cacbua, than chì carbon, alumina Vật liệu O-vòng Phụ thuộc vào vật liệu
Khả năng tương thích bơm Mô hình bơm Flygt 1335.181, 2024, 2056, v.v.
Làm nổi bật

Replace Flygt T05-35mm Pump Mechanical Seal

,

35mm Pump Mechanical Seal

,

DIN24960 Standard Pump Mechanical Seal
Để lại lời nhắn
Mô tả sản phẩm

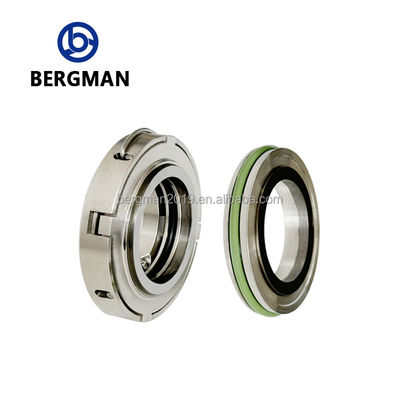

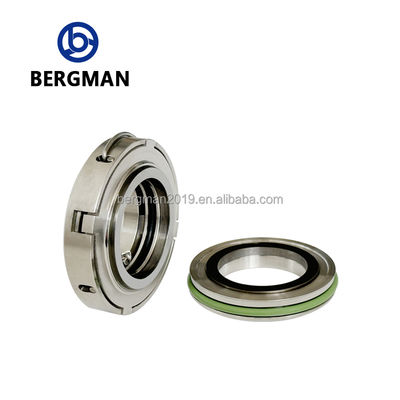

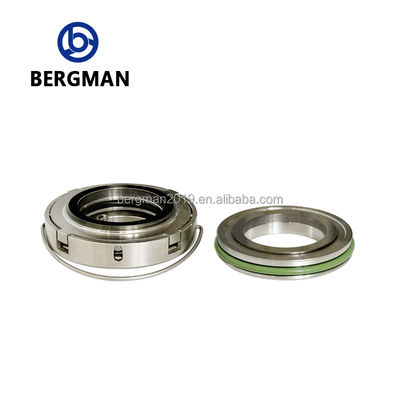

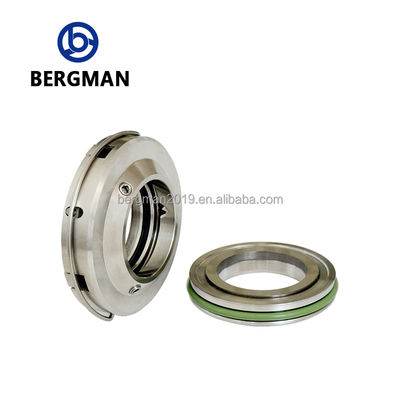

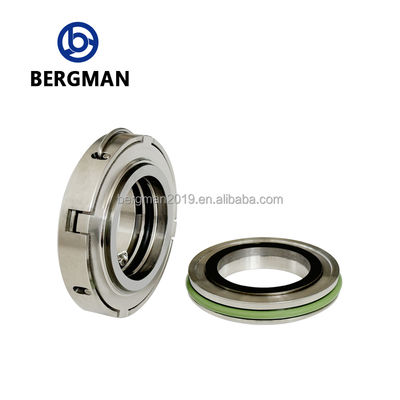

Replace Flygt T05-35mm 3127 4440 5530 Pump Mechanical Seal
Product Overview
Guangzhou Bergman Mechanical Seals Co., Ltd. offers high-quality mechanical seals designed for Flygt pumps, meeting international standards with durable materials and precise engineering.
Specification Details Specification Details
Name Mechanical Seal Size Standard size (20mm, 25mm, 35mm)
Brand BERGMAN Model T05-35mm
Pressure ≤ 1.5mpa Line speed ≤ 15m/s
Temperature -20°C-180°C (Depends on O-ring material) Application Flygt pump
Face Tungsten carbide TC Seat Tungsten carbide TC
Secondary seal VITON FPM Metal parts SS316 Hastelloy C AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models
1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400, 3501, 3530, and full range of Flygt pump mechanical seals.
Key Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective options
  • 2,000+ square meters warehouse with large inventory for fast delivery
  • Can replace Burgman, John Crane, AES and other world-renowned brands
  • OEM and customized services available
  • Factory-direct pricing with excellent quality and fast delivery
  • Comprehensive range of Flygt pump mechanical seals
Material Advantages
We use wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, and O-rings for superior performance and longevity.
Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size 0 Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size 1 Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size 2
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, Guangzhou Bogman Mechanical Seals Co., Ltd. was established in 2019, and Guangdong Bogman Seals Co., Ltd. was established in 2023. The company has passed the quality management system GB/T19001-2016 idt ISO9001:2015 certification.
We specialize in world-renowned pump mechanical seals, including axe mechanical seals, fluid mechanical seals, metal bellows mechanical seals, container mechanical seals, rubber bellows mechanical seals, O-ring seals, PTFE mechanical seals, stainless steel oil seals, skeleton oil seals, hydraulic oil seals, and automotive water seals. Our materials include cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with convenient access to Guangzhou Port, Shenzhen Port, and Foshan Port, we maintain a 2,000+ square meter warehouse for efficient logistics and quick delivery.
Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size 3
Exhibition and Warehouse
We maintain over 2,000 square meters of spot warehouses with more than a thousand product varieties available for immediate shipment.
Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size 4
Production Workshop
Our facility features modern advanced machine tool equipment, dust-free workshops, inspection equipment, and assembly line operations.
Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size 5 Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size 6
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.
Replace Flygt T05-35mm Pump Mechanical Seal with DIN24960 Standard and 35mm Size 7
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port. Other ports can be selected based on customer needs.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days for production, depending on order quantity and type.
Q: Do you provide free samples?
A: We typically don't provide free samples, but sample costs can be refunded after order placement.
Q: What is your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipment. We accept T/T, PayPal, Western Union, and Alibaba payments.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom product requests.
